Create Custom Chart Web Part in SharePoint 2010

Introduction

In this article I am exploring custom Chart Web Parts in SharePoint.

Reporting is an important part of any project. Sometimes the client requires the display of the records in a visual format.so we need to display records in a visual format like a Chart Web Part or some other.

Creating the sample

For displaying a list record in chart format please use the following procedure.

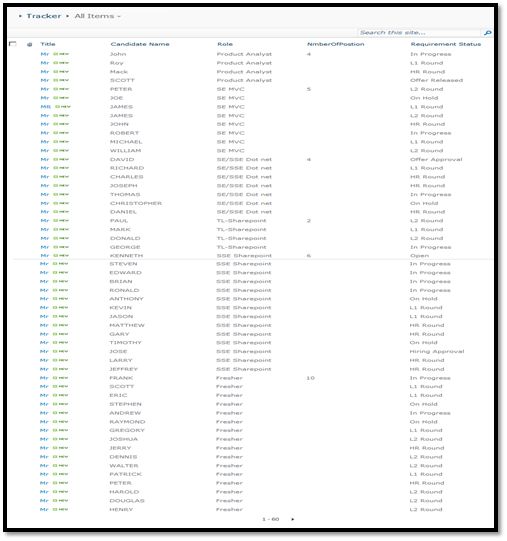

1. Create a list with numeral values as in the following:



2. Add the following references to your "web.config" file in their respective locations:

   <SafeControls>
   <SafeControl Assembly="System.Web.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" Namespace="System.Web.UI.DataVisualization.Charting" TypeName="*" Safe="True" />
   <system.web>
   <httpHandlers>
           <add path="ChartImg.axd" verb="GET,HEAD,POST" type="System.Web.UI.DataVisualization.Charting.ChartHttpHandler, System.Web.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" validate="false" />
             </httpHandlers>
    <appSettings>
   <add key="ChartImageHandler" value="storage=file;timeout=60;"/>
    <system.webServer>
    <handlers>
   <add name="ChartImageHandler" preCondition="integratedMode" verb="GET,HEAD,POST" path="ChartImg.axd" type="System.Web.UI.DataVisualization.Charting.ChartHttpHandler, System.Web.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" />

3. Add the following code in the cs file:

   using System.Data;
   using System.Linq;
   using System.Web.UI;
   using Microsoft.SharePoint;
   using System.Web.UI.DataVisualization.Charting;
   namespace SPChartWp.ChartWp
   {
       public partial class ChartWpUserControl : UserControl
       {
           DataView dv;
           protected void Page_Load(object sender, EventArgs e)
           {
               try
               {
                   SPSecurity.RunWithElevatedPrivileges(delegate()
                   {
                       using (SPSite oSite = new SPSite(SPContext.Current.Site.Url))
                       {
                           using (SPWeb oWeb = oSite.OpenWeb())
                           {
                               SPListCollection oListCollection = oWeb.Lists;
                               SPList oList = oWeb.Lists["Tracker"];
                               SPListItemCollection oItems = oList.GetItems();
                               DataTable dtMain = ConvertSPListToDataTable(oItems);
                               var dtNkdkdew = (from r in dtMain.AsEnumerable()
                                                select r).Distinct();
                               DataTable resulttbl = new DataTable();
                               IEnumerable<string> DistinRRMasterID = new List<string>();
                               DistinRRMasterID = (from results in dtMain.AsEnumerable()
                                                   select (string)results["Role"]).Distinct();
                               //Create DataTable
                               DataTable returnDt = new DataTable();
                               DataRow oRow = returnDt.NewRow();
                               string[] ColumnsArr = { "Role", "Number Postions", "In Progress", "On Hold", "L1 Scheduled", "L2 Scheduled", "HR Scheduled", "​Offer Released" };
                               int noOfColumns = ColumnsArr.Length;
                               for (int cntr = 0; cntr < noOfColumns; cntr++)
                               {
                                   DataColumn column = new DataColumn();
                                   column.ColumnName = ColumnsArr[cntr];
                                   column.DataType = typeof(string);
                                   returnDt.Columns.Add(column);
                               }


                               foreach (var rrRole in DistinRRMasterID)
                               {
                                   var rrInProgressCnt = (from r in dtMain.AsEnumerable()
                                                          where (r.Field<string>("Role") == rrRole
                                                          && r.Field<string>("Requirement Status") == "In Progress")
                                                          select r).Count();
                                   var OnHoldCnt = (from r in dtMain.AsEnumerable()
                                                    where (r.Field<string>("Role") == rrRole
                                                    && r.Field<string>("Requirement Status") == "On Hold")
                                                    select r).Count();
                                   var L1RoundCnt = (from r in dtMain.AsEnumerable()
                                                     where (r.Field<string>("Role") == rrRole
                                                     && r.Field<string>("Requirement Status") == "L1 Round")
                                                     select r).Count();
                                   var L2RoundCnt = (from r in dtMain.AsEnumerable()
                                                     where (r.Field<string>("Role") == rrRole
                                                     && r.Field<string>("Requirement Status") == "L2 Round")
                                                     select r).Count();
                                   var HRRoundCnt = (from r in dtMain.AsEnumerable()
                                                     where (r.Field<string>("Role") == rrRole
                                                     && r.Field<string>("Requirement Status") == "HR Round")
                                                     select r).Count();


                                   var OfferReleasedCnt = (from r in dtMain.AsEnumerable()
                                                           where (r.Field<string>("Role") == rrRole
                                                           && r.Field<string>("Requirement Status") == "Offer Released")
                                                           select r).Count();
                                   var MainColl = (from r in dtMain.AsEnumerable()
                                                   where (r.Field<string>("Role") == rrRole)
                                                   select r);
                                   #region Bind Fields datatable
                                   //Add Data to row
                                   //Create DataTable Rows
                                   oRow = returnDt.NewRow();
                                   var item = MainColl.FirstOrDefault();
                                   oRow["Role"] = rrRole;
                                   oRow["Number Postions"] = item["NmberOfPostion"];
                                   oRow["In Progress"] = rrInProgressCnt;
                                   oRow["On Hold"] = OnHoldCnt;
                                   oRow["L1 Scheduled"] = L1RoundCnt;
                                   oRow["L2 Scheduled"] = L2RoundCnt;
                                   oRow["HR Scheduled"] = HRRoundCnt;
                                   oRow["​Offer Released"] = OfferReleasedCnt;
                                   returnDt.Rows.Add(oRow);
                                   #endregion
                               }


                               Chart1.ChartAreas["ChartArea1"].AxisY.Title = "Number Postions";
                               Chart1.ChartAreas["ChartArea1"].AxisX.Title = "Role";
                               Chart1.DataSource = returnDt;
                               Chart1.DataBind();
                               dv = new DataView(returnDt);
                               dv.Sort = "Role ASC";
                               //Bind Data to Grid
                               GridView1.DataSource = dv;
                               GridView1.PagerTemplate = null;
                               GridView1.DataBind();
                           }
                       }
                   });
               }
               catch (Exception ex)
               {
                   Response.Write(ex.Message);
               }
           }
           private static DataTable ConvertSPListToDataTable(SPListItemCollection spItemCollection)
           {
               DataTable dt = new DataTable();
               try
               {
                   dt = spItemCollection.GetDataTable();
                   foreach (DataColumn c in dt.Columns)
                       c.ColumnName = System.Xml.XmlConvert.DecodeName(c.ColumnName);
                   return (dt);
               }
               catch
               {
                   return (dt);
               }
           }
       }
   }

4. The Web Part will be display as below:
