Introduction

In this article we will see how to implement SuiteBarBranding Delegate Control.

SuiteBarBrandingDelegate: This delegate care about top left site logo and text. Facilitates us to override the left-top corner text for the site. This text can only be replaced by overriding SuiteBarBrandingDelegate Delegate Control with custom control created using Visual Studio. Normally, there’s a text reading "SharePoint", so we can replace it with the title of our own site:

SuiteBarBrandingDelegate Control will look as follows in SharePoint Page.

Header before



Step 1: Create one empty SharePoint Project and provide the Solution Name and choose the Solution Path. Then click OK.

Step 2: Deploy the Solution as Farm Solution. Provide the Url in next screen and validate the connection.

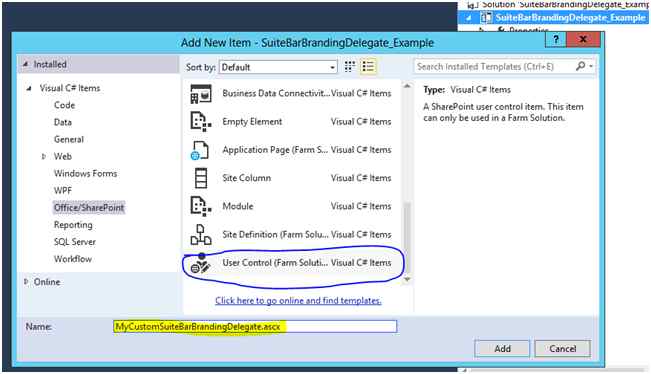

Step 3: Add New UserControl to the Project from the Templates and provide a Name to it. In our case it is “MyCustomSuiteBarBrandingDelegate”

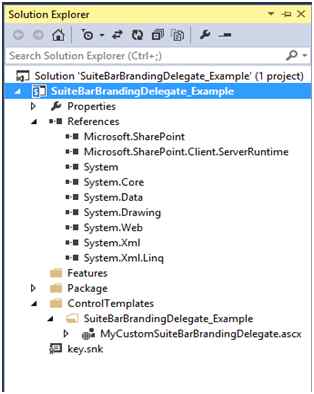

Now our Solution Explorer looks as follows,



Step 4: Now open the “.ascx” of the User Control and paste the following code.



Step 5: Code snippet for the ascx.cs file.

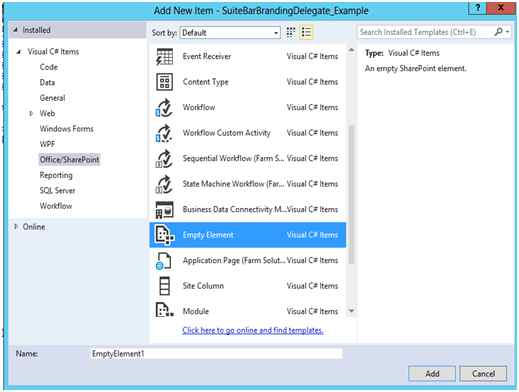

Step 6: Add Elements.xml file to the Solution, provide the name and click  Add.



Step 7: Click on elements.xml file and paste the following code snippet inside the elements tag.

1. <?xml version="1.0" encoding="utf-8"?>
2. <Elements xmlns="http://schemas.microsoft.com/sharepoint/">
3.   <!-- Adding DelegateControl reference to our custom SuiteBarBrandingDelegate Control -->
4.   <Control ControlSrc="/_controltemplates/15/SuiteBarBrandingDelegate_Example\MyCustomSuiteBarBrandingDelegate.ascx"
5.            Id="SuiteBarBrandingDelegate"
6.            Sequence="1" />
7. </Elements>

Step 8: Final step is build and deploy then the SharePoint text will be overridden with the text of the portal.

The final outcome will be as in the following screenshot,
